Signal Generator (CB24843E)

Details
Written by: Newton C. Braga

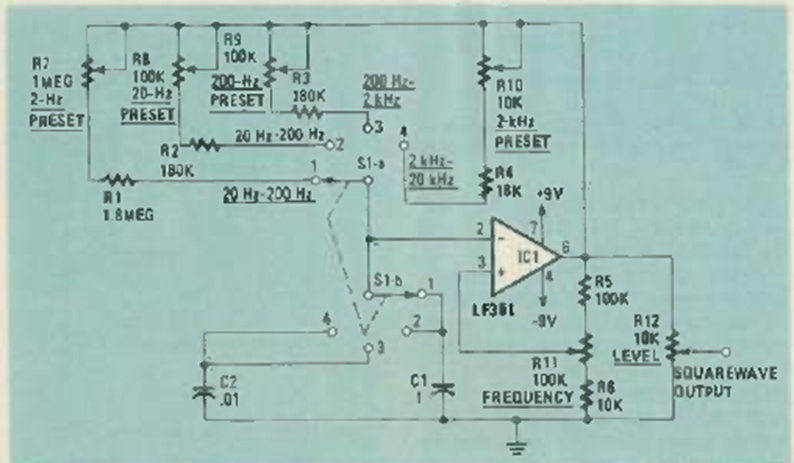

This circuit generates rectangular signals from 2 Hz to 20 kHz using an operational amplifier. The circuit is from 1984 Radio Electronics. The power supply must be symmetrical.




| Clique na imagem para ampliar |
