High Precision Regulator (CB24804E)

Details
Written by: Newton C. Braga

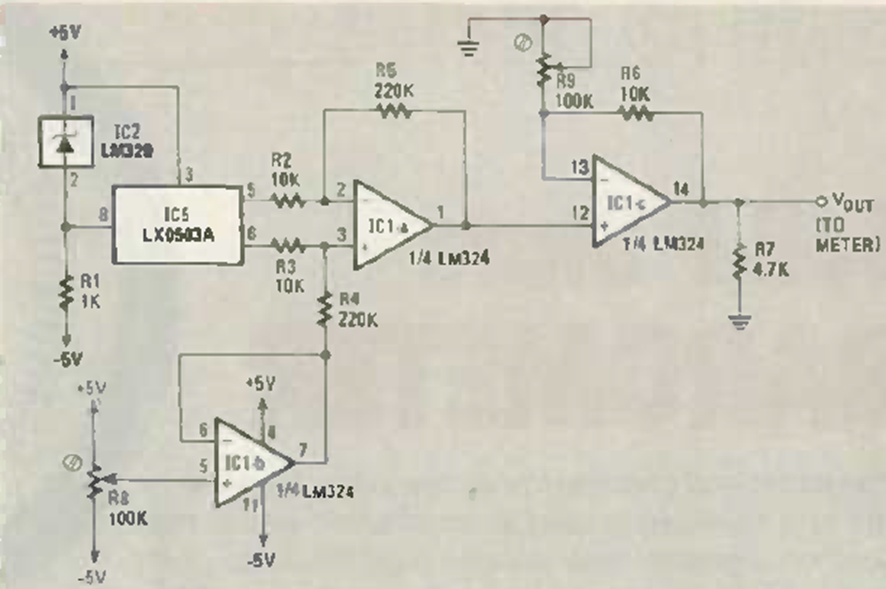

This regulator or voltage reference consists of a variable zener diode. We found it in the June 1984 issue of Radio Electronics magazine. The output current is low.




| Clique na imagem para ampliar |
