Dimmer (CB24528E)

Details
Written by: Newton C. Braga

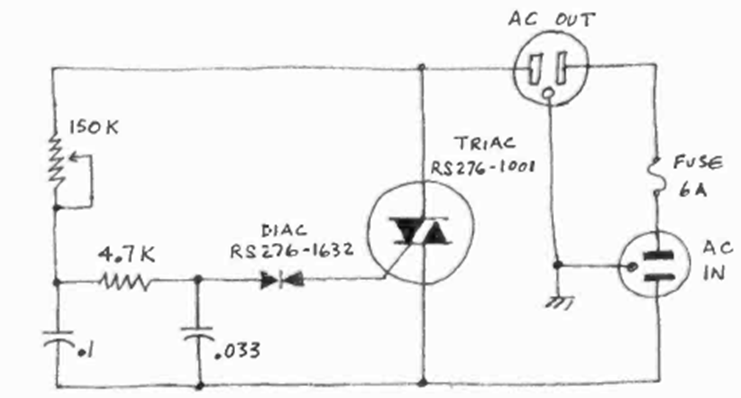

This common dimmer configuration is one of thousands that have appeared in electronics publications around the world. This one with a triac was found in October 1977 Radio Electronics magazine.
