1 kHz Low Pass Filter (CB24386E)

Details
Written by: Newton C. Braga

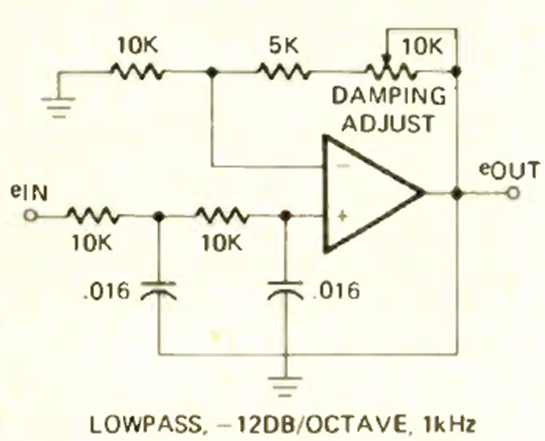

This basic op amp filter configuration was found in July 1975 Radio Electronics magazine. The components can be changed for other frequencies. Rejection is 130 dB per octave. The 741 can be used.
