Undertemperature Switch (CB24978E)

Details
Written by: Newton C. Braga

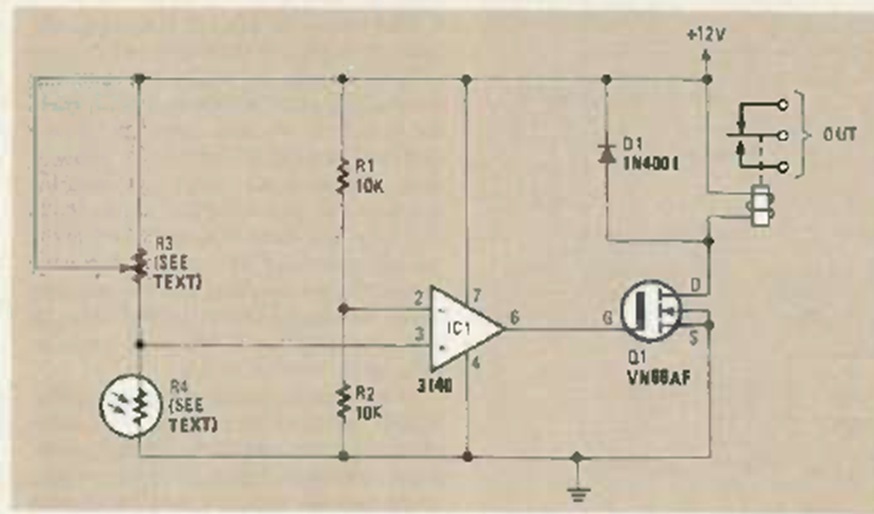

Unlike the previous circuit this one trigger when the temperature drops below the set value. The circuit is from June 1986 Radio Electronics magazine.




| Clique na imagem para ampliar |
