DA Converter (CB24747E)

Details
Written by: Newton C. Braga

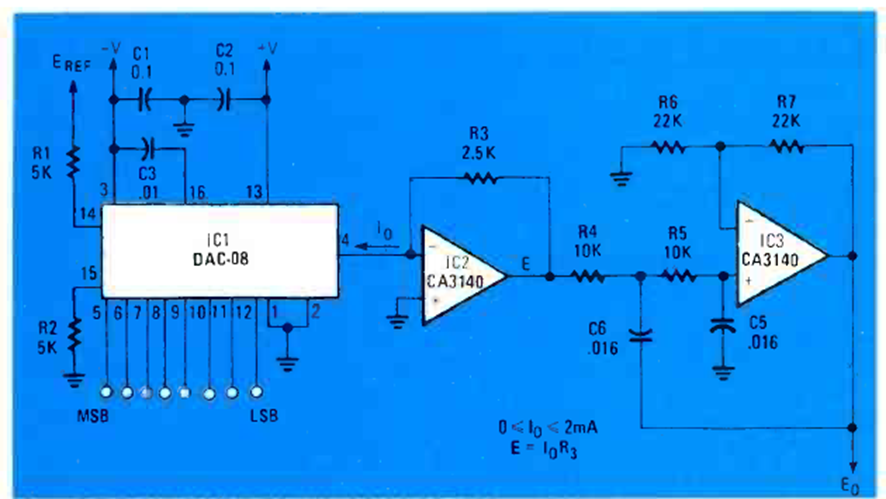

Using a DAC038 IC this circuit is from Radio Electronics from May 1983. The circuit must be powered with a 5 V source and uses common operating outputs.




| Clique na imagem para ampliar |
