RF Switch (CB24705E)

Details
Written by: Newton C. Braga

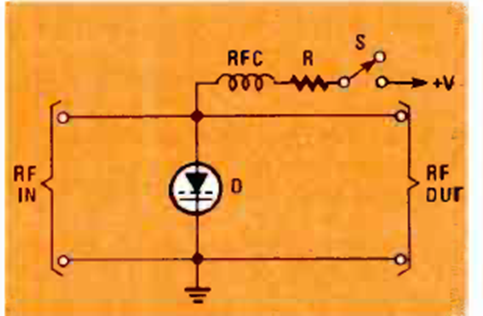

This RF signal switch circuit uses PIN diodes. The circuit is from a July 1982 Radio Electronics magazine. The switching voltage is a few volts.
