Voltage Reference with the ICL8069 (CB24680E)

Details
Written by: Newton C. Braga

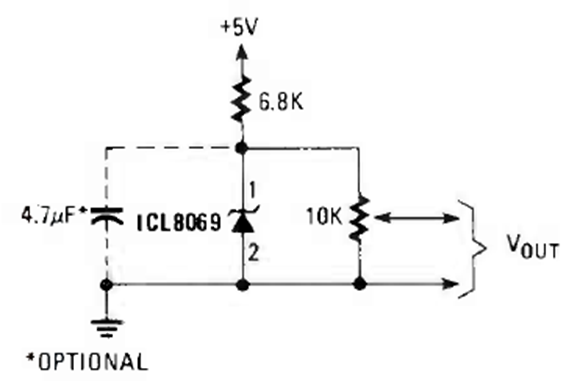

The ICL8069 is a precision voltage reference circuit. We found this basic application in February 1981 Radio Electronics magazine. The circuit is adjustable.
