Sound Detector (CB24605E)

Details
Written by: Newton C. Braga

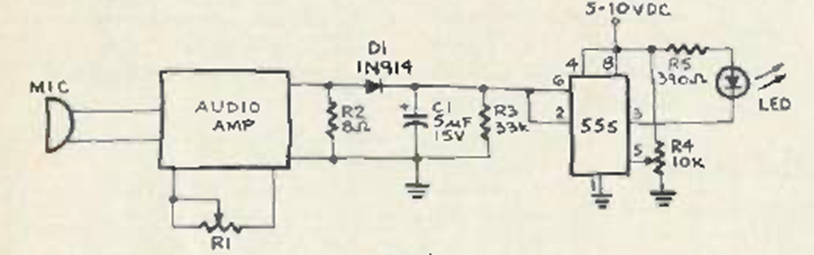

This circuit detects when an audio signal exceeds a certain level or even occurs due to an object falling, a door slamming or other. The circuit is from a Radio Electronics from January 1980.




| Clique na imagem para ampliar |
