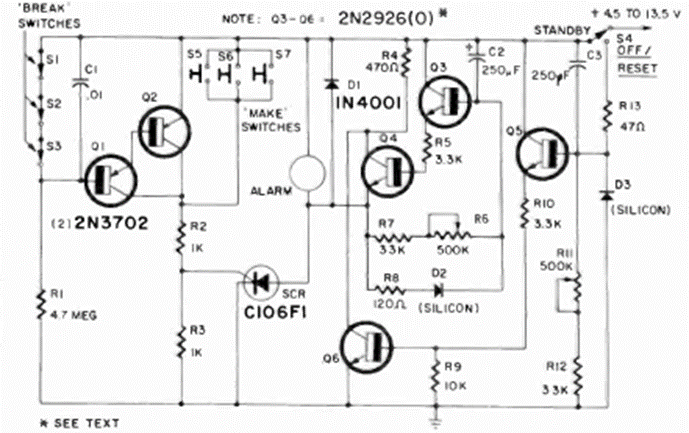

Complete Alarm with NO and NC Sensors (CB24141E)

Details
Written by: Newton C. Braga



We found this circuit in the July 1971 Radio Electronics magazine. The circuit activates a Sonalert or a relay for a higher power warning system.
