Volume Expander (CB24739E)

Details
Written by: Newton C. Braga

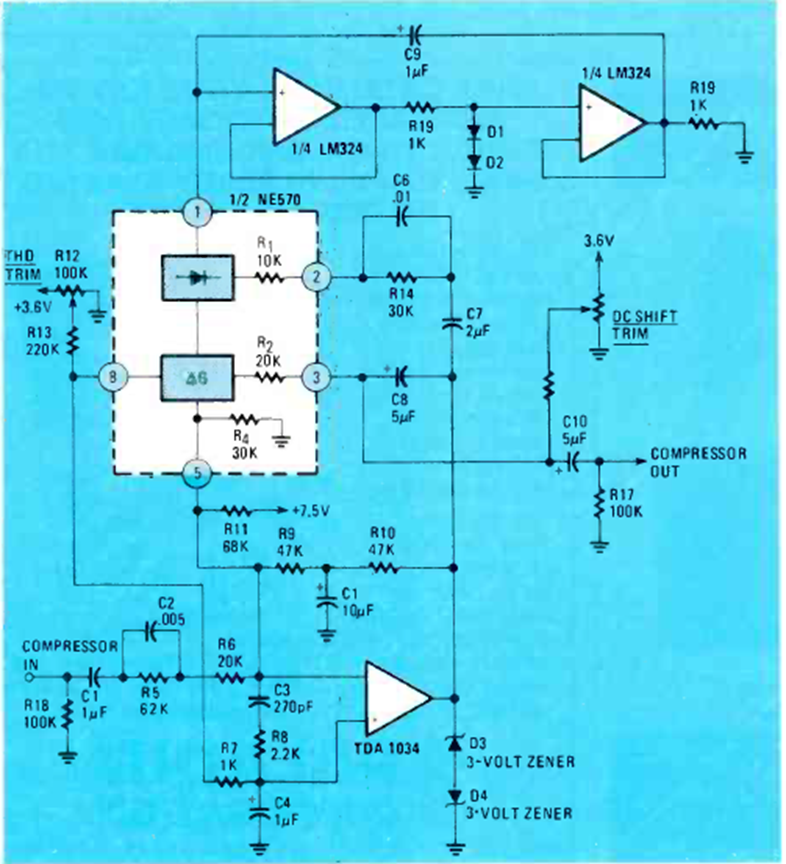

Used in radio reception, this circuit was found in the February 1983 Radio Electronics magazine. The integrated circuit is the NE570 IC, and the power supply is 3.6 V.
