Pulse Generator (CB24524E)

Details
Written by: Newton C. Braga

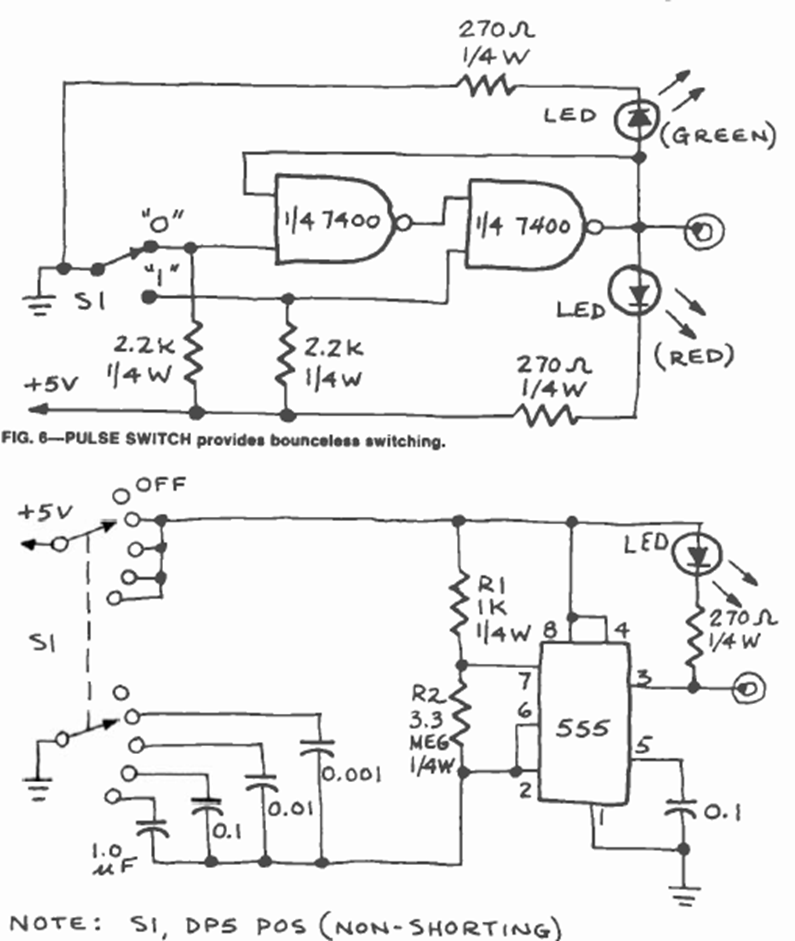

Using the 555 and 7400 this circuit was found in the September 1977 Radio Electronics magazine. The power supply must be made with a voltage of 5 V.
