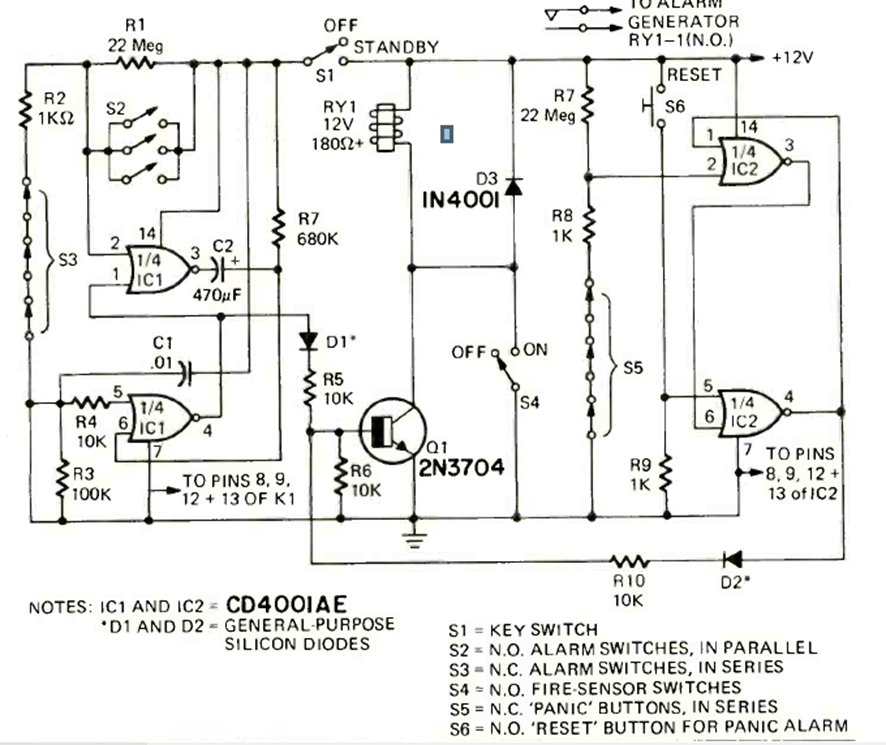

We found this circuit with NO and NC (series and parallel) sensors in the April 1975 Radio Electronics magazine. The circuit has a panic circuit and operates with a 12 V power supply or according to the relay used.
| Clique na imagem para ampliar |
Circuit with auto-shutdown and panic feature (CB24376E)
- Details
- Written by: Newton C. Braga
