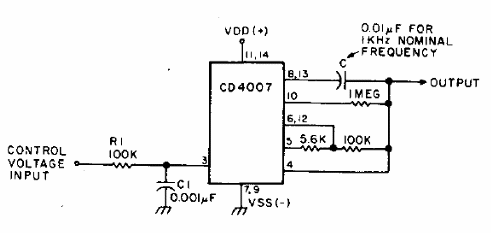

1 kHz CMOS VCO (CB1528E )
- Details
- Written by: Newton C. Braga
We found this circuit in a 1977 CMOS oscillators documentation. The power can be sourced with voltages from 5 to 15 V and the frequency can be modified by changing the capacitor.
