250 kHz Adder Amplifier LM108 (CB3997E)

Details
Written by: INCB

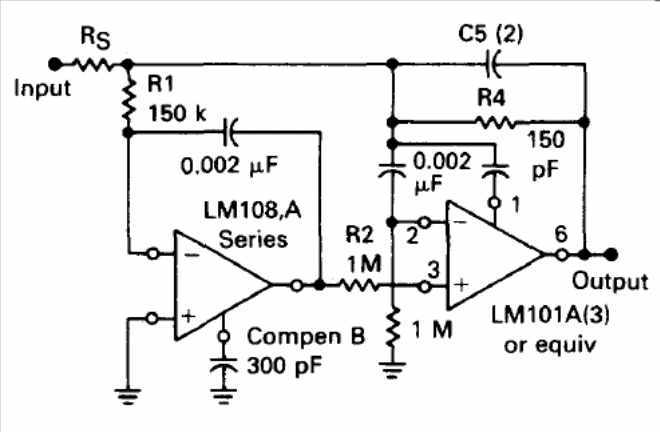

   This amplifier with the LM1098 and LM101 by Motorola from a 1990 manual can be designed with more modern operations. The bandpass for small signals is 3.5 MHz and the power range is 250 kHz.
