8 MHz Crystal Oscillator (CB3872E)

Details
Written by: Newton C. Braga

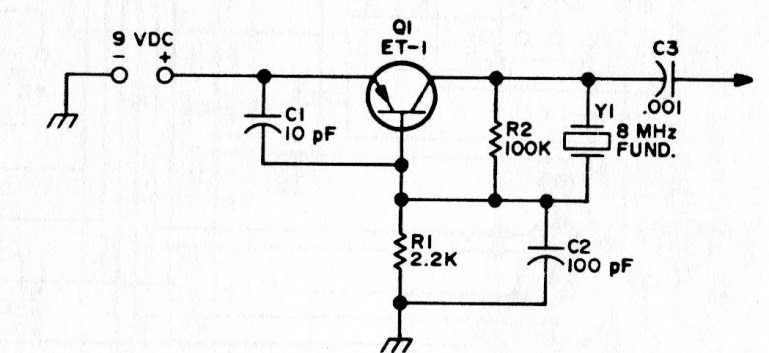

    RF or even switching transistors like the 2N2222 can be used in this circuit. The capacitors are ceramic and the frequency is determined by the crystal.




| Clique na imagem para ampliar |
