Trapezoidal Circuit (CB3916E)

Details
Written by: Newton C. Braga

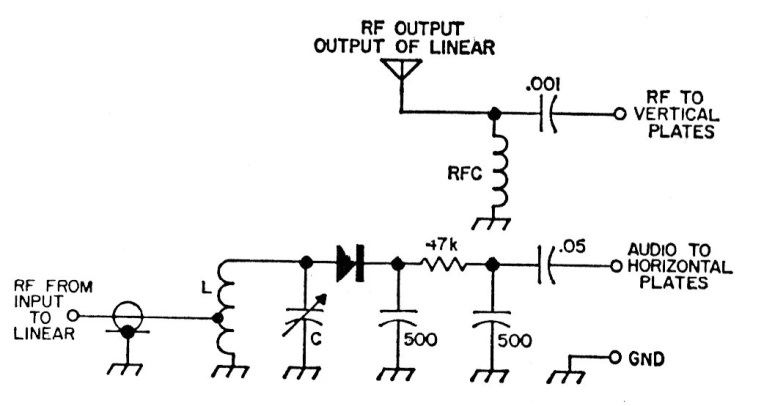

The purpose of this circuit is to check the linearity of SSB amplifiers. The circuit was found in an old documentation for hams. The diode is a general purpose detector type.




| Clique na imagem para ampliar |
