Signal Injector and Tracer (CB3917E)

Details
Written by: Newton C. Braga

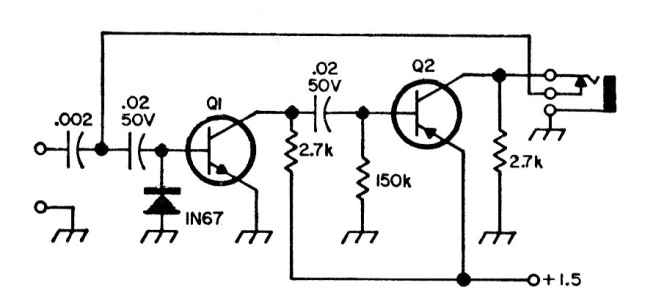

     This signal injector and tracer (follower) was found in an old American documentation. The transistors can be general use and power is made with one or two common cells.




| Clique na imagem para ampliar |
