Bass Booster LM386 (CB13684E)

Details
Written by: Newton C. Braga

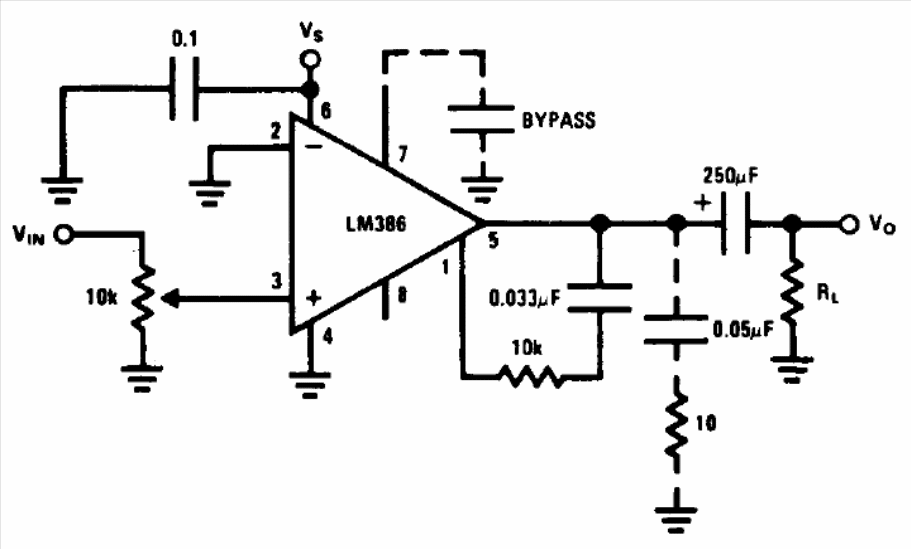

This low power bass booster is from the 1977 National Semiconductor Audio Handbook. The circuit is powered by 6 to 9 V voltages and the feedback determines the enhanced bass range.
