High Input Impedance Amplifier (CB4027E)

Details
Written by: Newton C. Braga

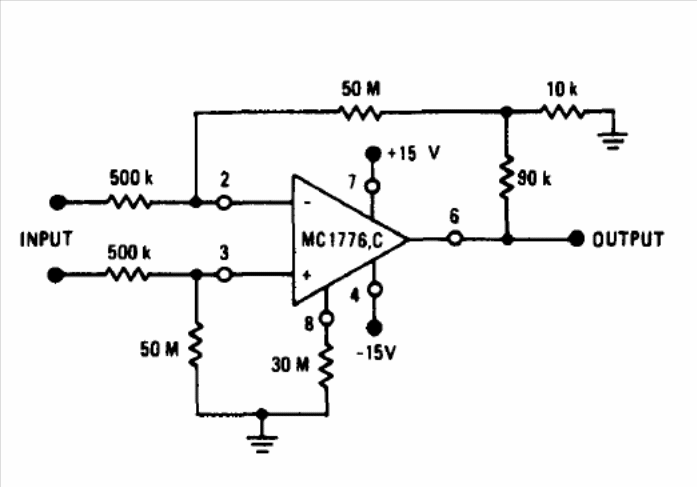

    This configuration can be implemented with equivalent operations. The circuit is from the 1990 Motorola Linear Databook. The voltage gain is 100 times.




| Clique na imagem para ampliar |
