SCR Flasher (CB6761E)

Details
Written by: Newton C. Braga

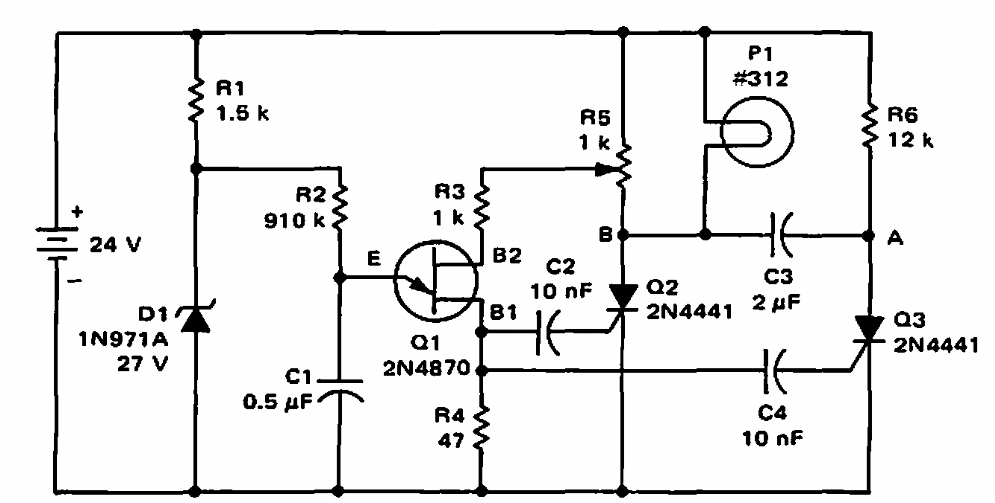

     This circuit was found in Motorola's 1968 documentation. The SCRs are then replaceable with current equivalents. The lamp is 24 V according to the power supply.




| Clique na imagem para ampliar |
