DC to AC Converter (CB25843E)

Details
Written by: Newton C. Braga

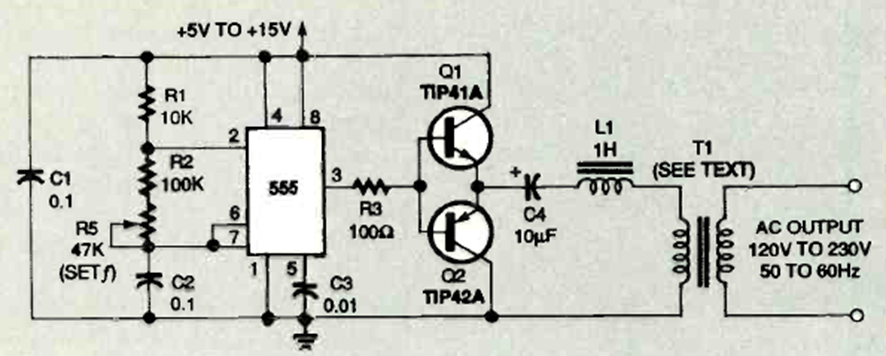

This circuit with a few watts of power was found in the April 1995 issue of Electronics Now magazine. The voltage obtained and the efficiency depend greatly on the transformer.




| Clique na imagem para ampliar |
