Stable VFO (CB4050E

Details: Written by: Newton C. Braga

)

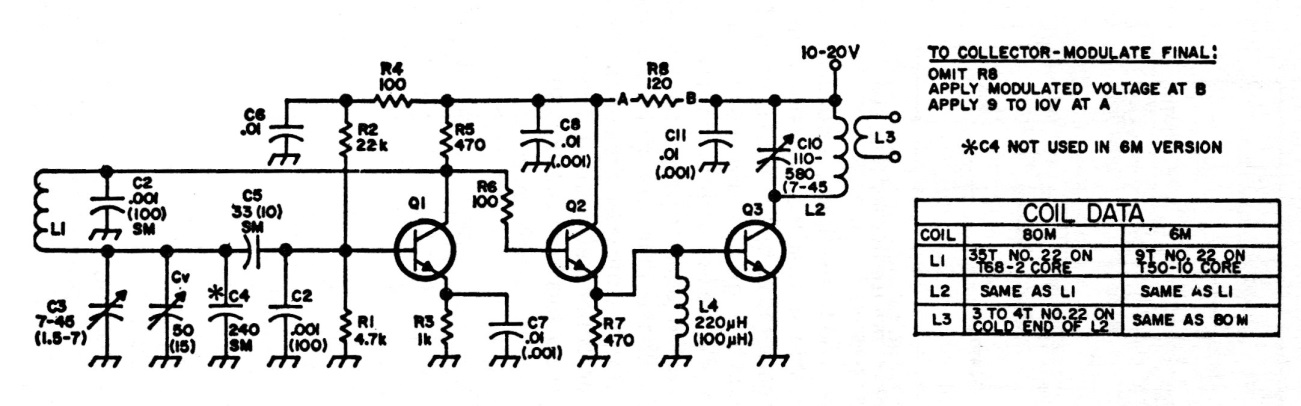

This variable frequency oscillator was found in an old American documentation. Transistors allow more modern equivalents and coil data are found next to the diagram for several frequency bands.

| Clique na imagem para ampliar |
