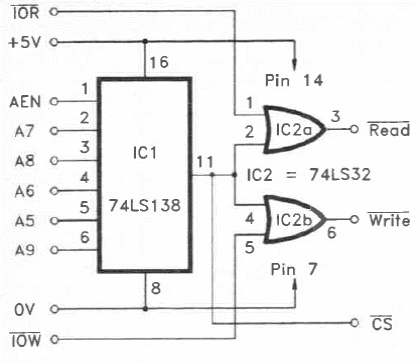

Address decoder using the 74LS138 (CB20537E)

This decoder circuit 3 of 8 was found in a publication for PCs from 1992. The circuits are TTL and must be powered with 5 V.
