Debouncer (CB20546E)

Details
Written by: Newton C. Braga

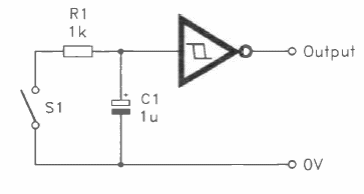

This anti-ringing circuit was found in an English documentation from 1996. The integrated circuit is the 74LS14.
