Sequential Upand Down (CB4579E)

Details
Written by: Newton C. Braga

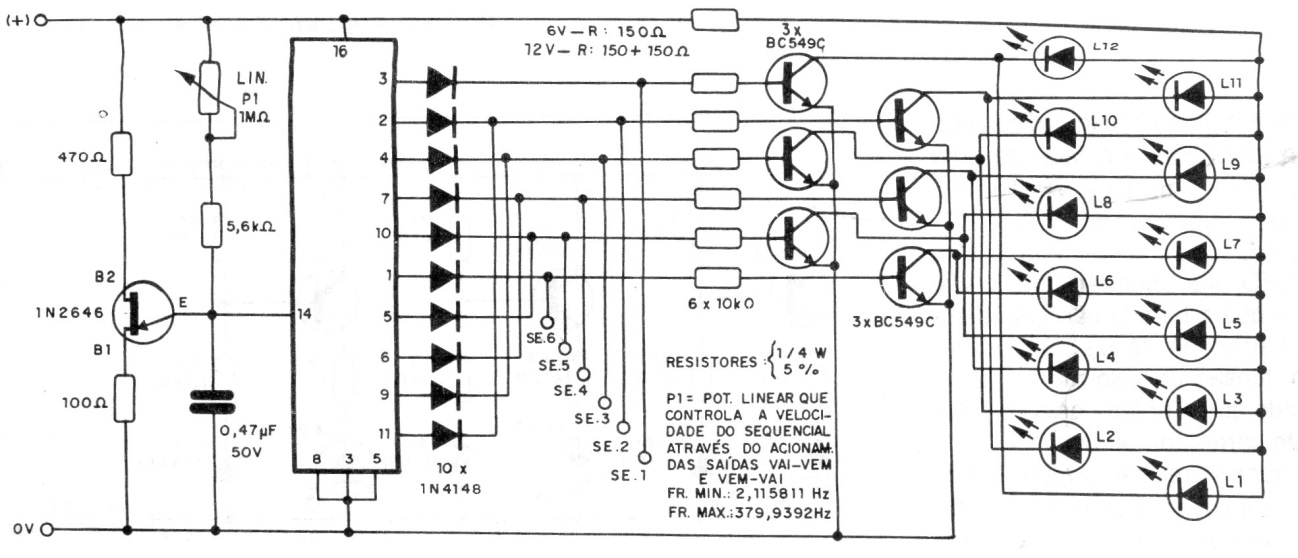

     This circuit uses components that are still common despite being from 1995 documentation. The circuit can be powered by 6 to 12 V voltages and the speed of the LEDs' sliding effect is set to P1.
