NiCad Simple Charger (CB4972E)

Details
Written by: Newton C. Braga

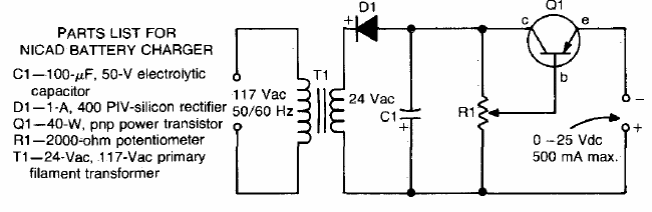

    This simple charger was found in a 1980s documentation. The transistor may be the TIP42 with a heat sink. R1 adjusts the load current. The transformer has 1 A of secondary current.




| Clique na imagem para ampliar |
