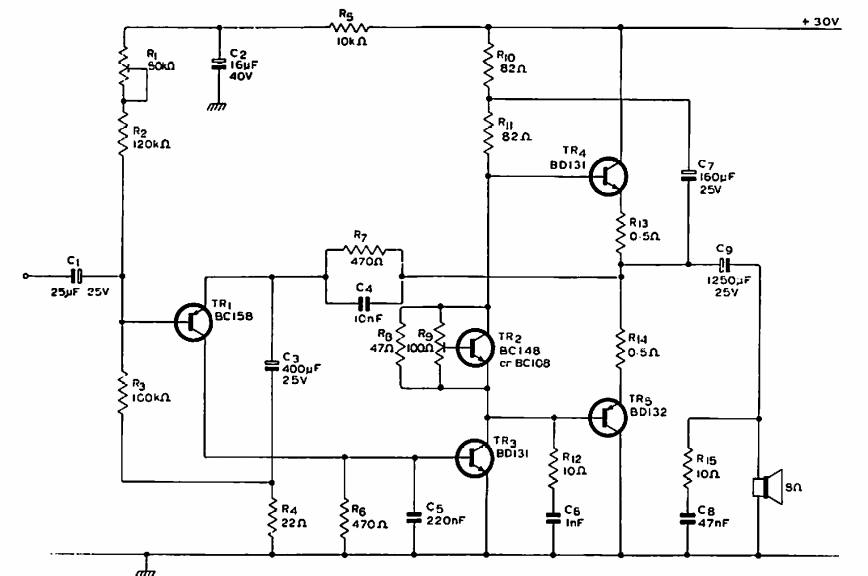

16 W Amplifier (CB6170E)

Details
Written by: Newton C. Braga



     This circuit was found in a 1969 Mullard documentation. Used transistors can be replaced with modern equivalents. Output transistors may be BD135 and 136 with heatsinks.




| Clique na imagem para ampliar |
