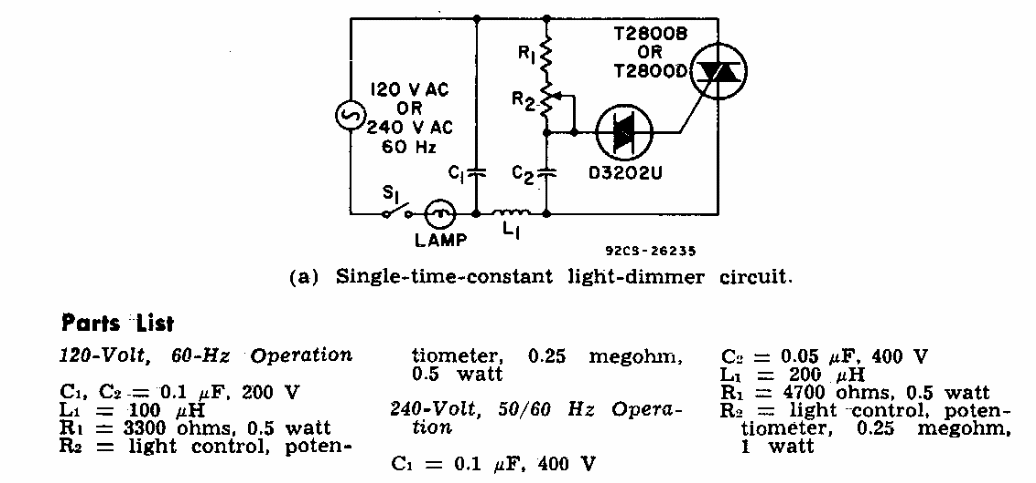

This dimmer for incandescent lamps was obtained from an American 1990s documentation. The circuit accepts triac-like loads that can be virtually any type. Triac must be fitted with a heat sink.
| Clique na imagem para ampliar |
Dimmer (CB5270E)
- Details
- Written by: Newton C. Braga
