Overload Alarm (CB6082E)

Details
Written by: Newton C. Braga

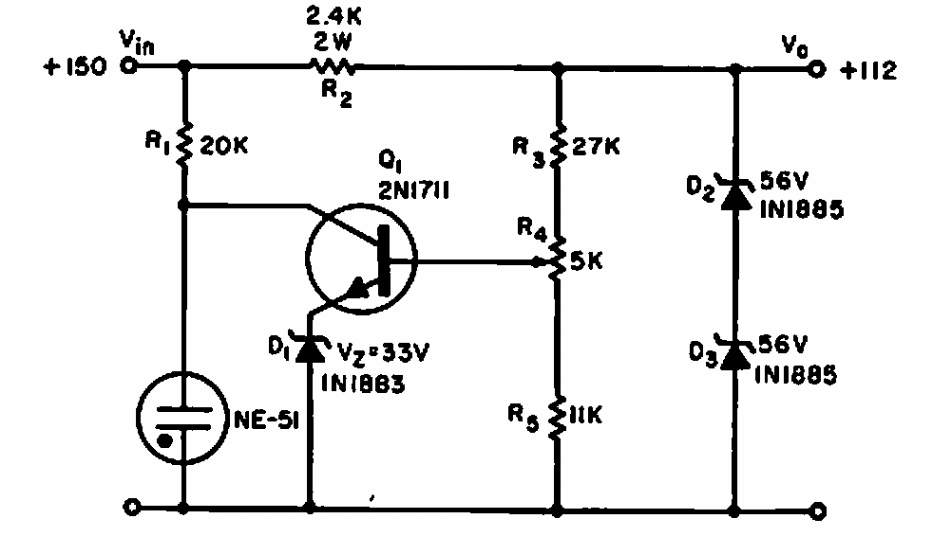

     This circuit is from a 60's documentation. The circuit uses components from the era and serves to monitor a 150V continuous power line.
