SSB Local Oscillator (CB6145E)

Details
Written by: Newton C. Braga

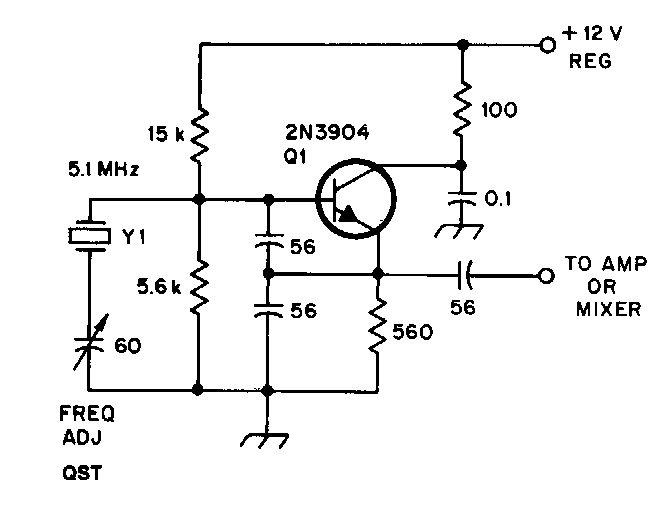

     This 5.1 MHz circuit was found in a 1980s documentation. The frequency is given by the crystal and general purpose transistors can be used.
