10 A NC Relay Shield (CB6015E)

Details
Written by: Newton C. Braga

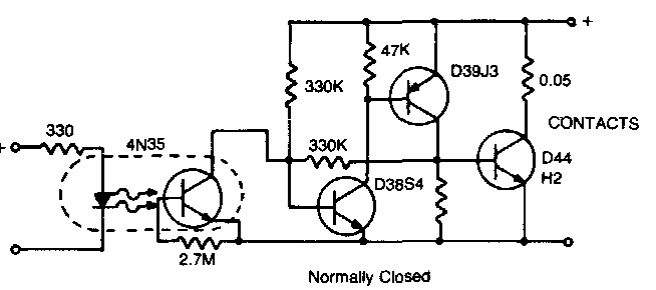

     This 10 A solid state relay was found in a 1980s documentation. It can work as a shield and implemented with modern equivalent transistors.
