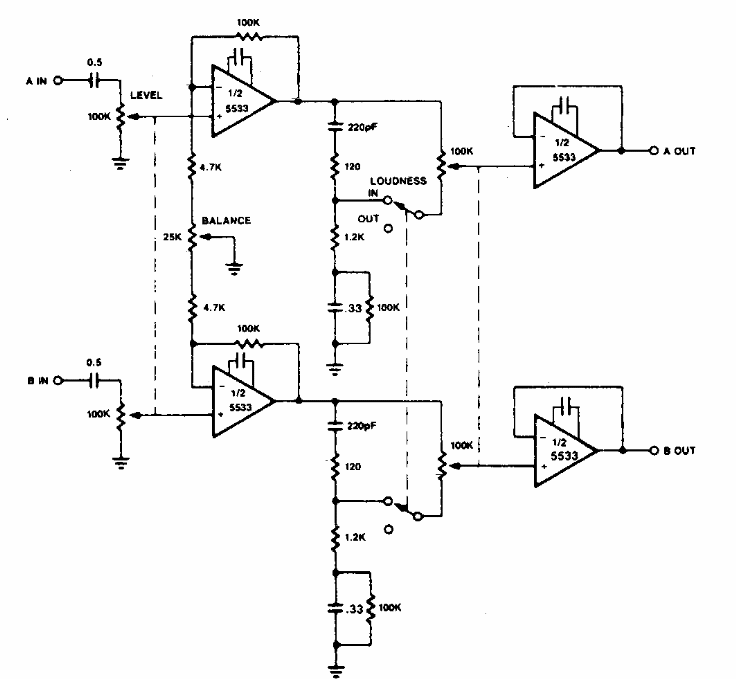

Balance and Audibility Amplifier (CB6037E)

This circuit is from an old Signetics documentation. It can be implemented with modern operational amplifiers. The power supply must be symmetrical.

| Clique na imagem para ampliar |

Stationary Wave Indicator for 27 MHz (CB18025E)
This circuit is indicated for the PX or 11-meter band, having been found in a 2003 documentation. The...
Varicap Remote Tuning (CB13346E)
This configuration from a 1976 technical documentation shows how to use a varicap in a direct...
High Impedance Differential Amplifier LM148 (CIR2854E)
Other operational amplifiers can be used in this circuit obtained from the manufacturer's own...
