Battery Voltage Monitor (CB6066E)

Details
Written by: Newton C. Braga

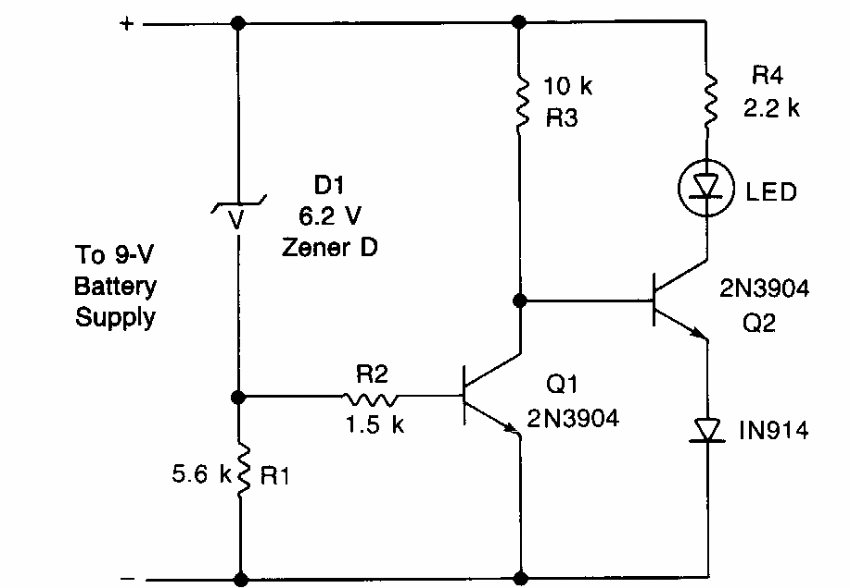

    This circuit is from an American 80's documentation. The circuit indicates when the voltage of a 9 V battery drops below 7 V. The transistors can be BC548.
