5 to 15 V power supply with the 7805 (CB5877E)

Details
Written by: Newton C. Braga

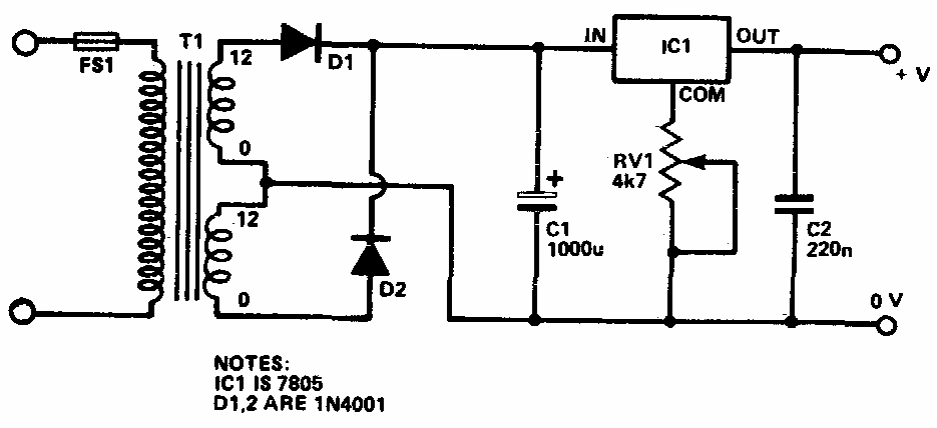

    This compact power supply can be used on the workbench for up to 1 A load. The transformer has 1 A secondary current. The integrated circuit must be mounted on a heatsink.
