Scratch Filter (CB6936E)

Details
Written by: Newton C. Braga

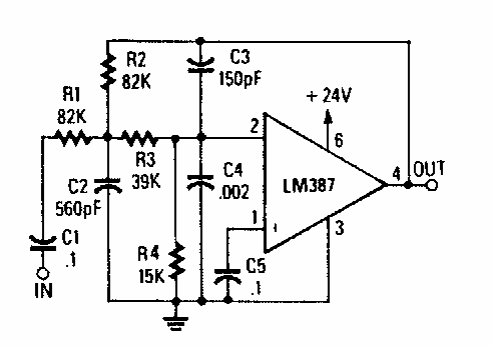

     This filter for the scratching noise common in record players was found in Radio Electronics from the 90s. The circuit uses components from the time and can be found elsewhere on this website and in this section.
