Fast Sampling and Retention 2 (CB5957E)

Details
Written by: Newton C. Braga

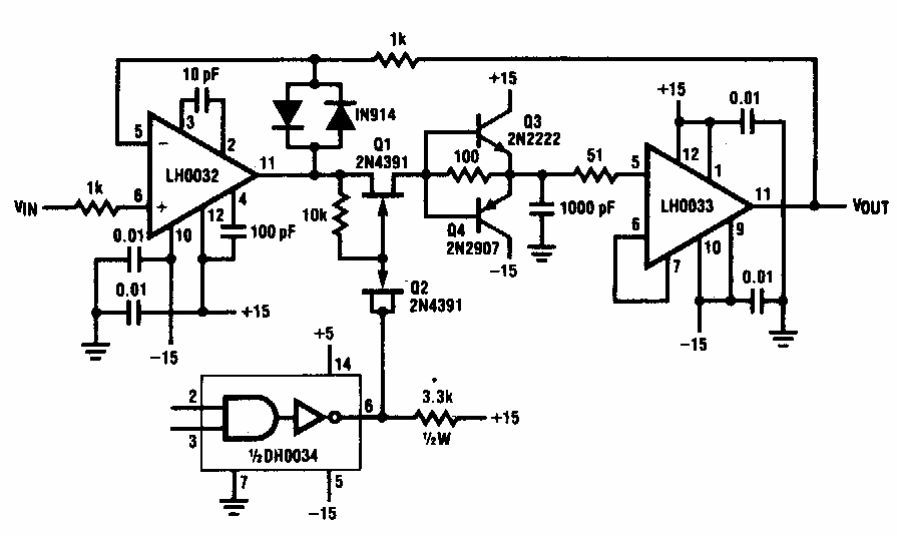

    This Sample & Hold circuit configuration is from an American 1980s documentation. The circuit uses components from the era, serving as a reference for studies or circuit analysis.
