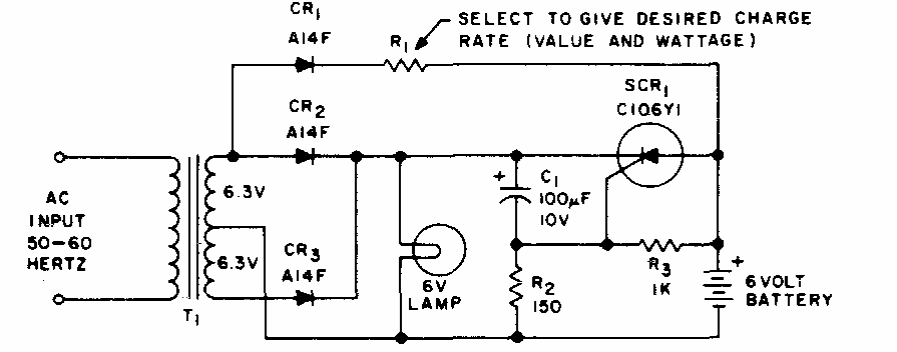

Emergency Lighting (CB5948E)

Details
Written by: Newton C. Braga



     This circuit also appears elsewhere on this site, obtained from other sources. This is an 80's American schematic book. Instead the lamp can be used white high-brightness LEDs.
