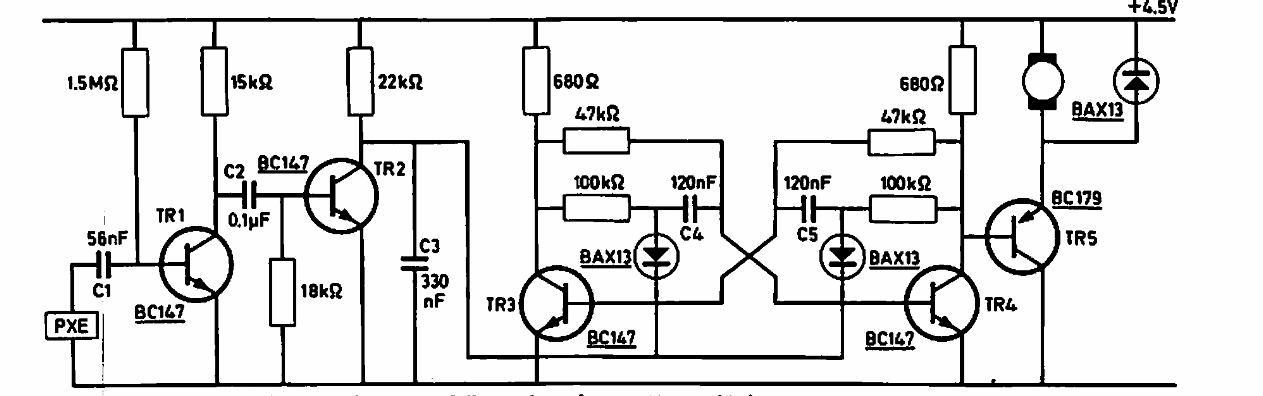

This 1969 Philips documentation circuit makes it possible to control an engine through the sound of a whistle picked up by a ceramic transducer. Transistors support modern BC series equivalents that are well known. TR5 depends on the motor.
