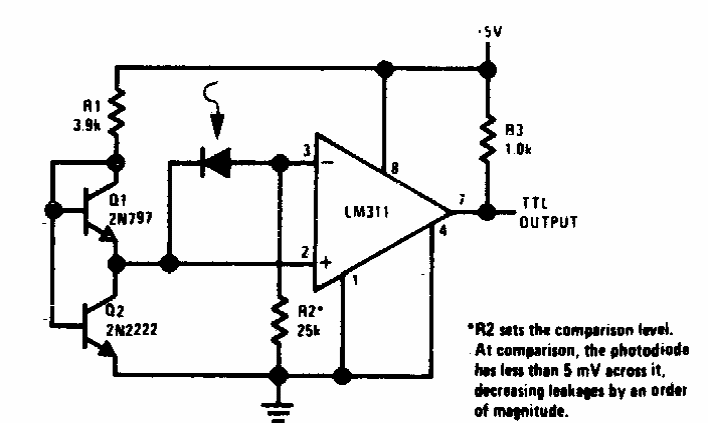

Photodiode comparator (CB5308E)

Details
Written by: Newton C. Braga



    We found this precision circuit in a manual from the 80's. The operational amplifier is of a common type at the time, and equivalents can be tested. Transistors are general purpose types.
