Battery Charger (CB6055E)

Details
Written by: Newton C. Braga

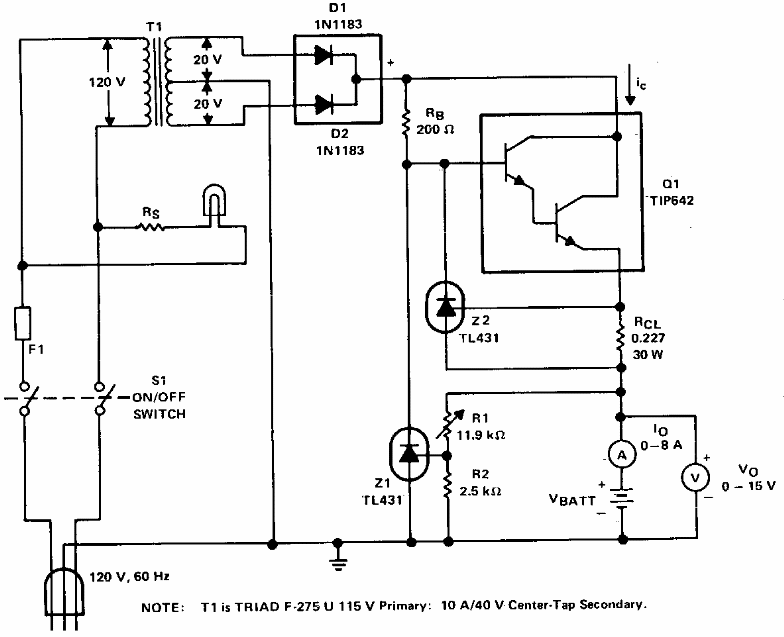

    This circuit was suggested by Texas Instruments in a 1980s documentation. The transistor must be equipped with a heat sink. The transformer has 10 A secondary current.
