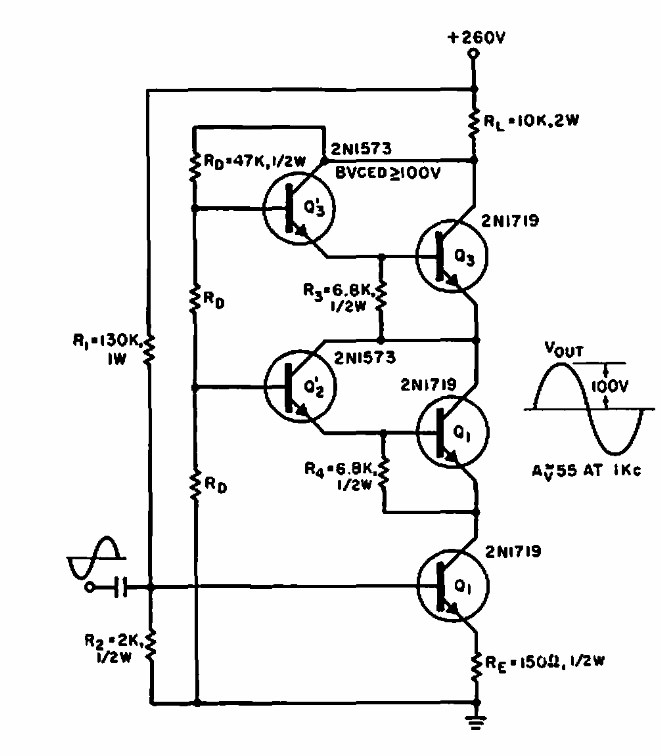

Darlington Linear (CB6122E)

Details
Written by: Newton C. Braga



     This circuit was found in a 1964 Electronic Design. The circuit makes use of transistors of the time. Current equivalent transistors may be experienced.
