Battery Status Indicator (CB6064E)

Details
Written by: Newton C. Braga

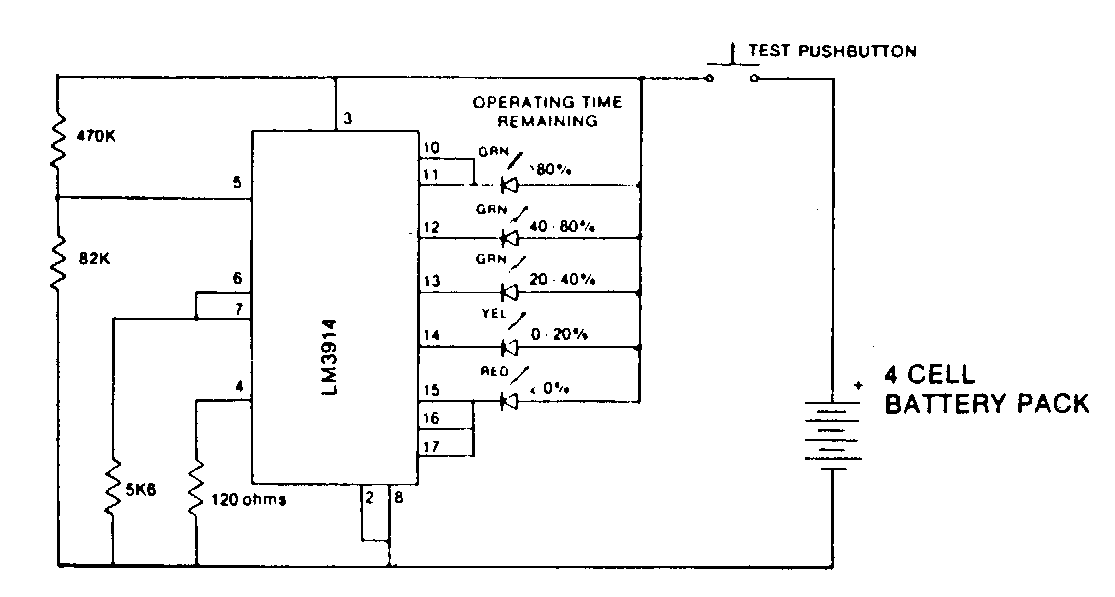

    This bargraph circuit is from an ancient American documentation. It indicates the charge state of a set of 4 batteries from 9.6 to 5.2 V.




| Clique na imagem para ampliar |
