Biestable Sound Switch (CB5991E)

Details
Written by: Newton C. Braga

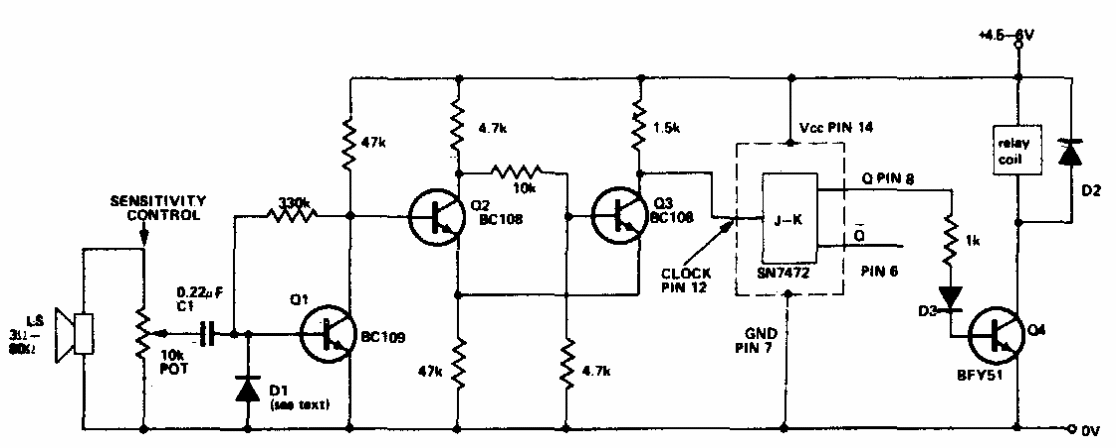

    This biestable vox circuit was found in an old documentation. The circuit makes use of components of the time (80's) and can work as a shield since the power is 5 V.
