Photodiode amplifier (CB6862E)

Details
Written by: Newton C. Braga

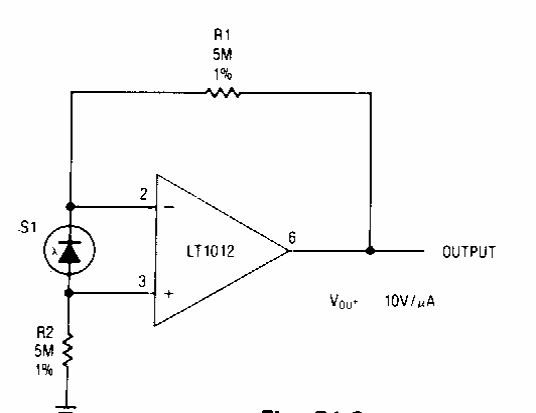

    Found in Linear Technology documentation from the 90s, this circuit uses an operational amplifier of the time. The configuration applies to other operational amplifiers. The power supply must be symmetrical.
