Digital Audio Power Meter (CB5447E)

Details
Written by: Newton C. Braga

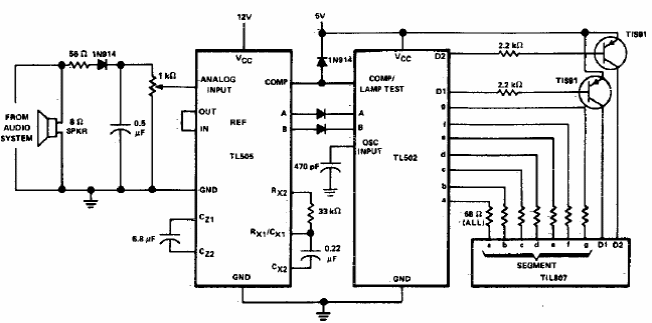

    This circuit uses uncommon Texas Instruments components today. The circuit is from an American documentation. Transistors are commonly used PNP. The display is 7 segment multiplexed.




| Clique na imagem para ampliar |
