Audio Booster (CB6181E)

Details
Written by: Newton C. Braga

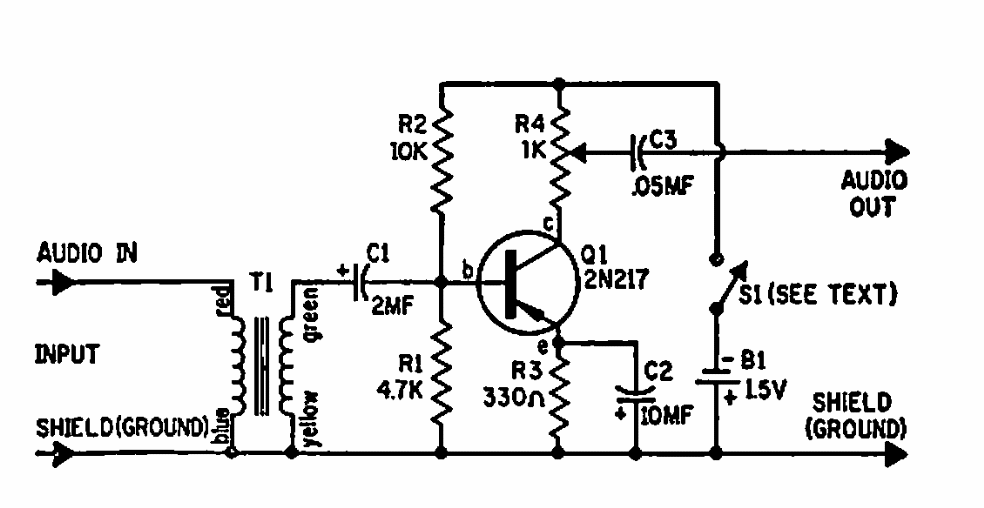

     This reinforcing stages from a 1960s documentation. No information is given about the transformer and the transistor admits equivalents.




| Clique na imagem para ampliar |
