Bargraph tachometer (CB7378E)

Details
Written by: Newton C. Braga

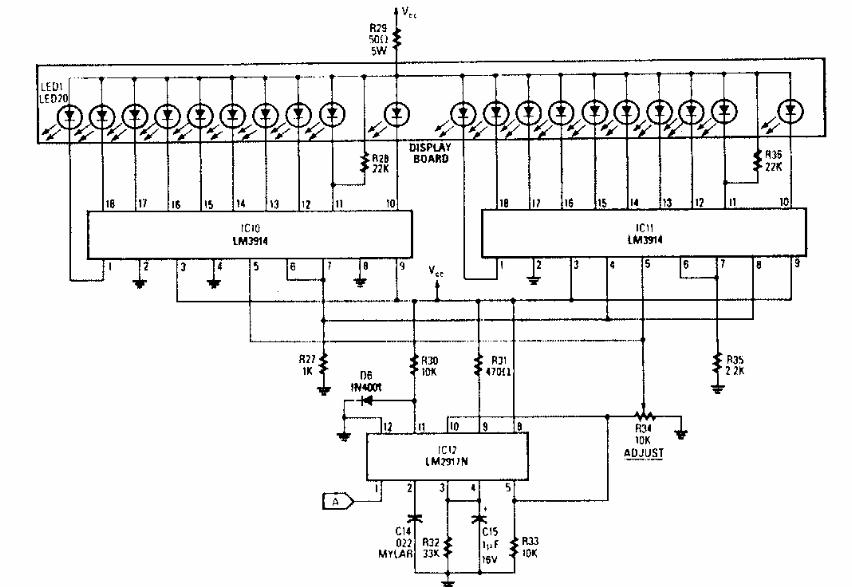

     This analog tachometer was found in Radio Electronics from the 90s. The components used can still be found with some ease.
