High Frequency Switch (CB6007E)

Details
Written by: Newton C. Braga

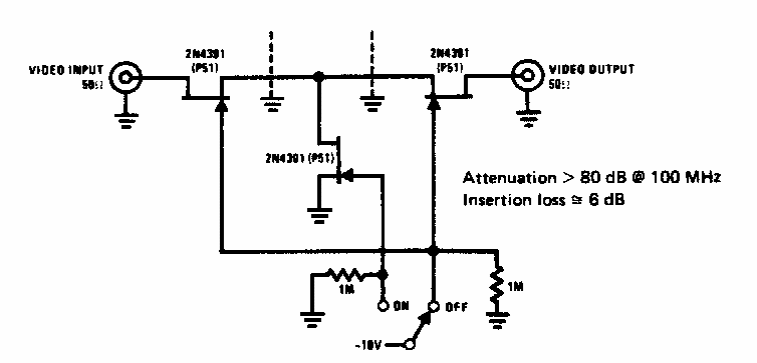

     This 80's circuit can be implemented with modern equivalent FETs with lower on resistance. The attenuation is 80 dB at 100MHz.
