Breathalyzer (CB25160E)

Details
Written by: Newton C. Braga

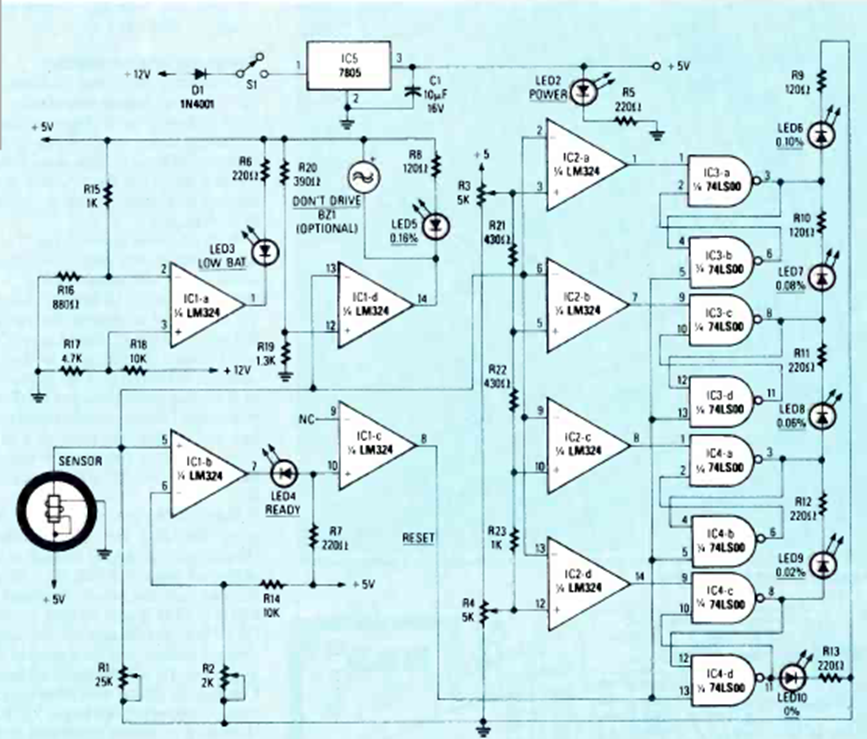

This circuit was published in an article in Radio Electronics magazine in October 1988. It uses components that are still common today, except for the sensor, which is a special type from that time.
